Dashboard

The dashboard gives you a snapshot overview of your organization.

Dashboard

General information

The number of devices / fleets / profiles / applications within your organization.
When your organization’s bundle has a limit, the maximum value is displayed on a second greyed line (e.g. “18 Fleets, Max.: 20”), otherwise the dashboard displays “Unlimited”.

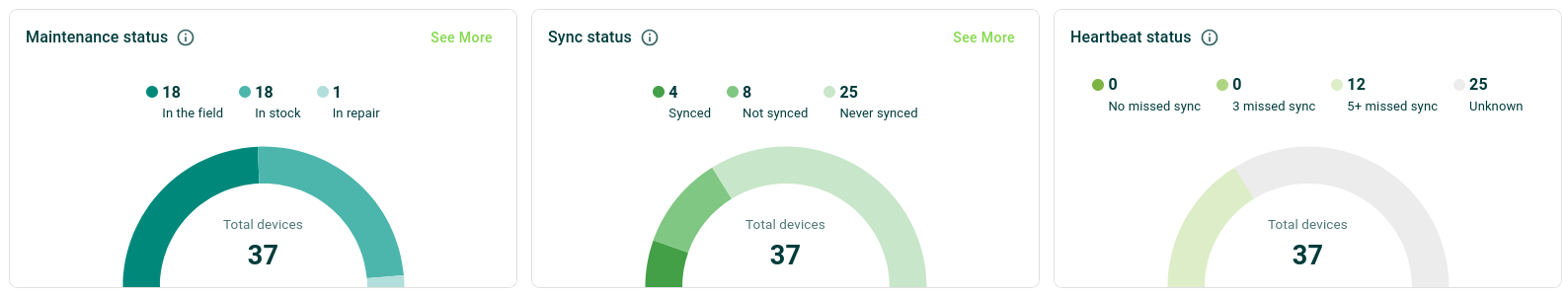

Maintenance and stock information

  • In stock
    Number of devices which are not associated to a fleet but are part of the organization ready to be assigned to a fleet.

  • In the field
    Number of devices which are associated to a fleet

  • Repair
    Number of devices which are in repair. The repair mode is reserved for faulty devices. The device configuration is reset to remove all applications.

Synchronization status

A device’s Synchronization status indicates if the current MDM settings have been fully applied to it. A device’s Heartbeat status indicates wherever or not it has been able to communicate with MDM at the last expected sync attempt(s).

The Synchronization status has no correlation with Heartbeat status. Device tries to synchronize with the MDM at specific intervals (defined in the profile settings). Sometimes this process fails because some of the synchronization tasks are not completed — this affects the synchronization status — and sometimes this process also fails due to a temporary lack of connection between the device and MDM or some other reasons (device turned off, for example) — this affects the heartbeat status.

The dashboard displays Synchronization and Heartbeat status counts (see below).

Synchronization

  • Synchronized
    Number of devices which are synchronized to the MDM (last sync finished with no remaining pending actions and nothing changed in the device/fleet/profile MDM settings since then).
  • Not Synchronized
    Number of devices which have not synchronized (a sync attempt ended with pending actions or no sync was attempted) since a change in the device/fleet/profile MDM settings has been made
  • Never Synchronized
    Number of devices which have never been synchronized with the MDM

Heartbeat

  • Last rendezvous OK (green)
    Indicates the number of devices that have reported at their last rendezvous with the MDM (since a duration equals to the MDM sync interval).
  • 3 missed rendezvous (orange)
    Indicates the number of devices that have missed the last 3 expected rendezvous with the MDM (since a duration equal to 3 times the MDM sync interval).
  • 5 missed rendezvous (red)
    Indicates the number of devices that have missed the last 5 expected rendezvous with the MDM (since a duration equal to 5 times the MDM sync interval).
